Microsoft Defender for Identity sensor installation failing - error code 0x80070643

Description:

You are trying to install Microsoft Defender for Identity sensor on a Domain Controller. The Domain Controller need to use proxy to communicate to the internet. You've enter the correct proxy setting on the Domain Controller system setting. And you've make sure the required communication port (443) are already open from Domain Controller to *.atp.azure.com. However you still got stop error 0x80070643.

Resolution:

Configure the proxy setting using registry. You must copy the proxy configuration that you use in user context to the localsystem and localservice. To copy your user context proxy settings:

1. Make sure to back up the registry keys before you modify them.

2. In the registry, search for the value DefaultConnectionSettings as REG_BINARY under the registry key HKCU\Software\Microsoft\Windows\CurrentVersion\Internet Settings\Connections\DefaultConnectionSettings. Export all the value inside the Connections key.

3. Open the exported file and edit the location to become HKU\S-1-5-18\Software\Microsoft\Windows\CurrentVersion\Internet Settings\Connections\DefaultConnectionSettings. Save the first copy of the file.

4. Double click the new file to import the value from the Current_user DefaultConnectionSettings to LocalSystem.

5. After that, open the exported file and edit the location to become HKU\S-1-5-19\Software\Microsoft\Windows\CurrentVersion\Internet Settings\Connections\DefaultConnectionSettings. Save the second copy of the file.

6. Double click the second file to import value from the Current_User DefaultConnectionSettings to LocalService.

7. Close the registry editor.

Try to re-run the installation process again.

Cannot Re-Install NPCAP

Description:

You are trying to re-install NPCAP as part of Microsoft Defender for Identity Sensor deployment on a Domain Controller. However you got stuck uninstall error problem.

You have try to remove the registry from Computer\HKEY_LOCAL_MACHINE\SOFTWARE\WOW6432Node\Microsoft\Windows\CurrentVersion\Uninstall\NpcapInst. However the problem still exist.

Resolution:

Search for possible services that were using NPCAP. Example is Wireshark or Cisco Tetration. Stop those services and try to re-install NPCAP again.

Fixing Error nvlddmkm.sys on Event Viewer

Description:

You are using Nvidia GPU. And sometimes you saw nlddmkm.sys error in the event viewer. The GPU is crash and cannot restart normally.

Resolution:

Go to HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\GraphicsDrivers

Add new Dword record. Enter TdrDelay as the name of the new DWORD. Set its Value Data to 8.

Click OK and close Registry Editor. Restart the Server.

Note:

If you still experiencing nlddmkm crash error after this, you may need to upgrade or downgrade your NVDIA Graphic driver. Version 472.12 seems to provide more stabile result.

Azure B2B Script to create Guest On-Prem Active Directory Account is Not Working

Description:

You are configuring Azure B2B to allow external users to access your on-premise application securely.

You have configure the Azure B2B setting and have publish the on-premise application using Azure AD Application Proxy. Now you want to use the Azure B2B script to create the Guest account in on-premise Active Directory automatically.

You downloaded the script from https://www.microsoft.com/en-us/download/details.aspx?id=51495.

However when you run it, you saw some error and the users never get created in on-premise Active Directory.

During troubleshooting, you found out that the script has not enough application permission to connect or query to Azure AD. You even triple check the API permission, but cannot found the cause of the error.

Resolution:

The "AppProxy-GuestAccountCreation-v1.0.3.ps1" script is not updated. PowerShell script still uses deprecated Azure AD Graph API instead of MS Graph API.

You can download the updated script from https://github.com/MicrosoftDocs/azure-docs/files/7090340/AppProxy-GuestAccountCreation-v1.0.3.txt.

Make sure you install Microsoft Graph PowerShell SDK prior to executing the script.

Error when using PowerShell Connect-MgGraph not recognized

Description:

You already install the Microsoft Graph PowerShell SDK on your machine. However when trying to run a script that has "Connect-MgGraph" command, you encountered not recognized cmdlet, function, script  error. You have also restarted the machine and make sure the Microsoft Graph Module was loaded.

Resolution:

There might be some conflict between Microsoft Graph module and other module on your machine. The possible conflict are with Azure AD or MSOnline modules.

Try to install the Microsoft Graph PowerShell SDK on other machine which has minimum or has only the default PowerShell module.

Intermittent ADFS Event ID 224 & 245 at WAP Server

Description:

At Web Application Proxy Server (WAP) configured to connect to ADFS, you saw several Event ID 224 & 245 intermittently appear. TCP Port 443 are already open between WAP and ADFS.

Resolution:

Make sure you have all the required certificate on WAP server, including the intermediate and trusted root of the SSL certificate.

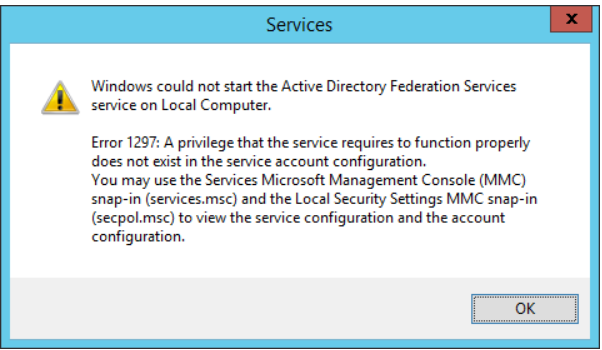

Error 1297 when starting AD FS Service

Description:

When you try to start ADFS Service for the first time after finishing the configuration, you may encounter 1297 error.

Resolution:

You need to make sure that the service account that you use to run the ADFS Service has the following rights on the ADFS Server:

• Logon As Service
• Generate Security Audits

How to set mutisubnetfailover option on ADFS to SQL Database connection string

Description:

You want to use SQL Always On capability for your application.

You need to change the Database Connection string.

Resolution:

Please run the following at PowerShell on all ADFS Server (one by one):

$temp= Get-WmiObject -namespace root/ADFS -class SecurityTokenService
$temp.ConfigurationdatabaseConnectionstring=”data source=<you sql instance>;multisubnetfailover=true;initial catalog=adfsconfiguration;integrated security=true”
$temp.put()

Set-AdfsProperties –artifactdbconnection ”Data source=<you sql instance>;multisubnetfailover=true;Initial Catalog=AdfsArtifactStore;Integrated Security=True”

Exception Error when Running PowerShell command to Update the ADFS SQL Connection String.

Description:

As per article from https://docs.microsoft.com/en-us/windows-server/identity/ad-fs/design/federation-server-farm-using-sql-server, we need to run the following command to update the SQL connection string for the AD FS configuration database:

PS:\>$temp= Get-WmiObject -namespace root/ADFS -class SecurityTokenService

PS:\>$temp.ConfigurationdatabaseConnectionstring="datasource=<SQLCluster\SQLInstance>;initial catalog=adfsconfiguration;integrated security=true"

PS:\>$temp.put()

The update is necessary to support SQL Always On feature.

However, there's an "exception error" when you run the above script in PowerShell.

Resolution:

For modifying the connection string on the additional ADFS server in the Farm, you need to stop the ADFS Service first. After that run the above script and start the ADFS Service again.

Error when adding a new Windows Server 2016 to ADFS Server Farm with SQL Database

Description:
You have successfully configured the first ADFS Server with SQL Database in a ADFS farm. Now you want to add another node to the ADFS Farm.

However when you run the ADFS Configuration wizard, you encountered an error and the process stops.

At the prerequisite checks, we can see several errors as per below:

• "An error occurred during an attempt to connect to the AD FS configuration database. Error: Login failed for user 'Domain\The account I am logged into the server with'.. Confirm that the database hostname and instance name are correct and that the specified service account has logon access to the database."

• "Cannot open database "AdfsConfigurationV0" requested by the login. The login failed.

• Login failed for user 'domain\managed service account$'."

Resolution:
Make sure the account that you are using have the Owner Access to the ADFS database.
The permissions can be removed after adding the new nodes.

Cannot Start ADFS Service after changing the Database Connection string to support SQL Always On

Description:
You have configured the first ADFS 2016 Server with SQL as the Database. Later on the day, the SQL Admin has also set the ADFS Database to have Always On capability.

You've follow the syntax from https://docs.microsoft.com/en-us/windows-server/identity/ad-fs/design/federation-server-farm-using-sql-server to change the SQL Connection string on the first ADFS server to support SQL Always On feature.

However when you try to restart the ADFS service, it is always failed.

Example Script:

PS:\>$temp= Get-WmiObject -namespace root/ADFS -class SecurityTokenService
PS:\>$temp.ConfigurationdatabaseConnectionstring="data source=<SQLCluster\SQLInstance>;initial catalog=adfsconfiguration;integrated security=true"
PS:\>$temp.put()

Resolution:

You need to modify the above example script. Make sure the "data source" are correct, and also the "initial catalog" value are the same as the actual database name in SQL. For example you may need to write "adfsconfgurationv3" instead of just "adfsconfiguration" on the above script.
